Information Equipment Systems

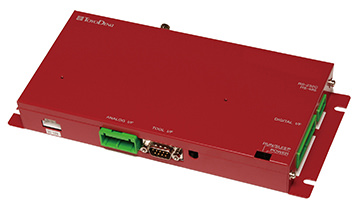

IORemoter Terminal for Remote Monitoring and Control System
IoT/M2M Terminal with Cloud Service and Multiple Interfaces
Features
- Internal FOMA module
Transmits acquired data over FOMA network, eliminating the need to install data lines. - Multiple interfaces
Supports analog input, digital input/output, serial communication, controller area network (CAN), and Ethernet. - On-board use
Designed to withstand harsh vibration for on-board use. Optional internal GPS. - Low-power mode
Battery driven, no need for external power support.
General Specifications
| Item | Specification | ||
|---|---|---|---|
| Applications | Fixed monitoring | Vehicle Monitoring | |
| Operating ambient temperature | ―10℃～＋50℃ | ―20℃～＋60℃ | |
| Storage (transport) temperature | ―30℃～＋85℃ | ||
| Relative humidity | 25%～85% condensation-free | ||
| Power supply voltage | AC 100V/110V （AC 85-132V） | DC 12V/24V （DC 10-32V） | |
| Power consumption | 7.5 W or less (including optional GPS) Low-power mode |
||
| Interface | Analog input | 4-channel Voltage input (0 – 5 V) or current input (4 – 20 mA) |
|
| Digital input | 4-channel (contact input) + 4-channel (voltage input) = 8-channel Contact inputs shared with digital outputs |
||
| Digital output | 4-channel (transistor output) Shared with digital inputs (contact inputs) |
||
| Serial communication | RS-232C 3-channel RS-422/485 single-channel configuration to select RS-422/485 |
||
| CAN | 1CH | ||
| GPS | ─ | 1-channel (Option) | |
| Ethernet | 1CH | ||
| FOMA | 1CH | ||
| Auto Power Off function | ─ | ○ | |
| External dimensions | 210 mm × 120 mm × 30 mm (excluding protruding parts) | ||
| Construction | IP30 protection | ||
| Weight | 830g | 800g | |
